316L Stainless Steel Liquid Filter Housings 1.5" Sanitary Flange For Wine Filtration

Product Categories

Shanghai Sffiltech Co., Ltd

Contact Now

Name: 316L Stainless Steel Liquid Filter Housings 15quot Sanitary Flange For Wine Filtration
Brand: SFFILTECH
Price: 1 USD

Brand Name : SFFILTECH

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 SET PER MONTH

Delivery Time : 15-30 DAYS

Packaging Details : WOODEN CARTON

PRODUCT : 316L stainless steel liquid filter housing for wine filtration

Inlet/Outlet : 1.5" Sanitary Flange

Surface Finish : Interior/Exterior

filter media : SS316L,SS304

Size : 5",10",20",30",40"

O-Ring : Silicone, Viton, EPDM, etc

Contact Now

Features and Benefits of cartridge water filter housing

Mirror Surface Finish Complete Stainless Steel Construction

Reduces bacterial/particle adhesion and no dead space

Excellent corrosion resistance

Easy To Install Design With Sanitary Connections, Easy to Clean

Available in tri-clamp, flanged and thread connections

Requires minimum floor space and quickly dismantles for easy cleaning

Housings Accommodate From One (1) to Many 10", 20", 30" or 40" Cartridges

Suitable for small to large batch sizes and flow rates

High pressure & high temperature designs are available

Clean-in-Place (CIP) /Steam-in-Place (SIP) Design

Typical Applications of cartridge water filter housing

Technical Specification

Material:	Housing	Stainless Steel 304 and 316L for Choice
	O-Ring	Silicone, Viton, EPDM, etc
Surface Finish:	Interior/Exterior	Electro polished, Ra≤0.2um
Connections:	Inlet/Outlet	Tri Clamp	1” to 10” Or as your request
		Flange
		Thread
	Vent	¼" female
	Drain	1" male or as your request
Lid/Cover Type:	Swing Bolts or Tri Clamp(only for single round)
Designed Pressure:	10bar (145 psi) with in 30mins
Operating Pressure:	Max. 7.2 bar(108 psi)
Temperature:	Max. 95 ℃ (sterilization 150 ℃)
Cartridge Adapter:	220, 222, 226, etc
Cartridge Capacity:	1, 3, 5, 8..... 30, 36, 45 round

Specifications

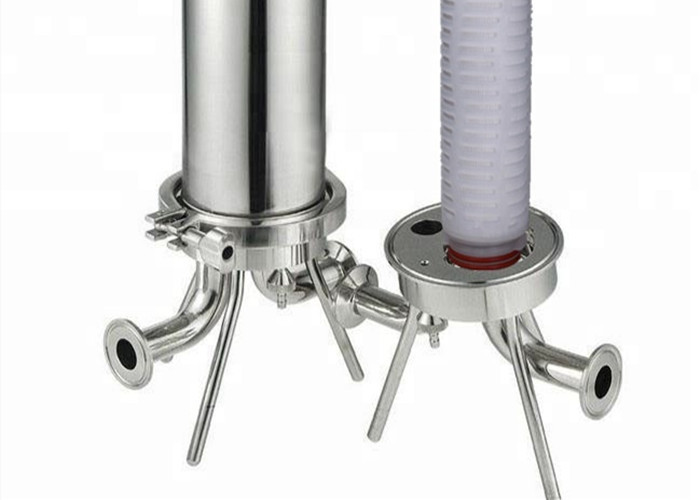

316L Stainless Steel Liquid Filter Housings 1.5" Sanitary Flange For Wine Filtration
