High Flow Pressure Liquid Filter Housings 0.5Mpa Pressure 3.8L Volume 18m3/H Capacity

High Flow pressure Stainless Steel ss bag Filter Housing

bag filter for water treatment is a new structure, small size, simple and flexible, energy efficient, airtight work, adaptable multipurpose filtration equipment.

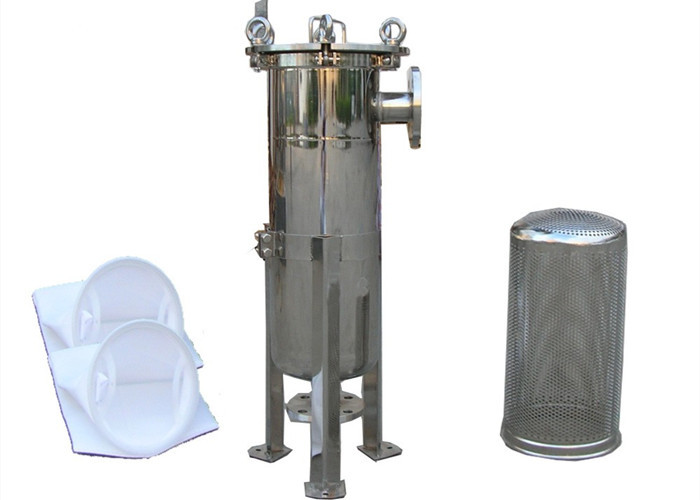

The bag filter for water treatment consists of filter body, body cover and quick open device, main stainless steel strengthen mesh, bags and other components. The series filter is a pressure-type filter. Liquid flows into the feed inlet, due to the pressure, the liquid flow from the bottom outlet, and the impurities retained in the bags, The whole process efficient, simple, and very easy to replace the bag, basically no material consumption.

Applicable materials: paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating solution, milk, mineral water, hot solvent, latex, industrial water, sugar, resins, inks, industrial waste water, fruit juice, edible oils, waxes.

Main feature of bag filter for water treatment,

1. The single bag filter adopts precision castings, thus featuring high-precosonmanufacture, very few welded seams, and stable pressure.

2. This product is designed with a typical hermetically-sealed structure. Special design of a

hot-melt filter bag with steel ring or plastic ring can ensure that both filtration equipment and filtration process has almost no leakage.

3. In addition, our single bag filter is characterized by easy installation, convenient operation,

and small footprint. With wide applications, it can be used for coarse filtration, moderate

filtration, or refined filtration.

4. Due to the adoption of compact pipe connection and fully polished basket, no impurities are

deposited inside filtration equipment and pipeline. Other advantages include high filtration

efficiency and extremely small operating space.

5. All locking devices can utilize stainless steel eyebolts instead of ordinary galvanized carbon

steel parts. In this way, the phenomenon of rusting bolts can be prevented after several years of use of the single bag filter.

6. For achieving the same filtration effect, our product can offer numerous advantages like low

investment costs, long service life and low filtration costs, when compared with various machine such as the plate-and- frame fine filer, cartridge filter, raw water pretreatment device, and the fine filtration equipment, etc.

7. The single bag filter has a high cost- performance ratio with view to reasonable structure, low operating costs, superb filtration effect, and great handling capacity.

Specification and technical parameter

Packing&shipping

Standard export packing is plywood case

Shipping method including: Courier (DHL, FEDEX, TNT, UPS), By Airline, By Sea

Price Term including: EXW

stainless steel filter housing

liquid bag filter housings

High Flow Pressure Liquid Filter Housings 0.5Mpa Pressure 3.8L Volume 18m3/H Capacity Images
